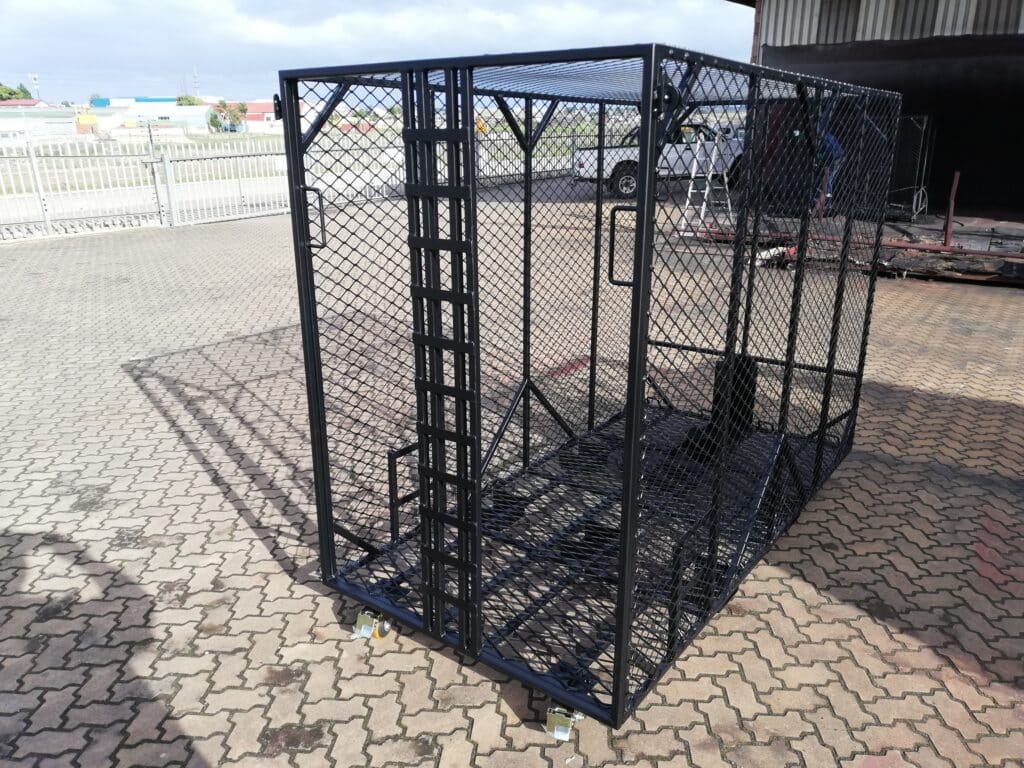

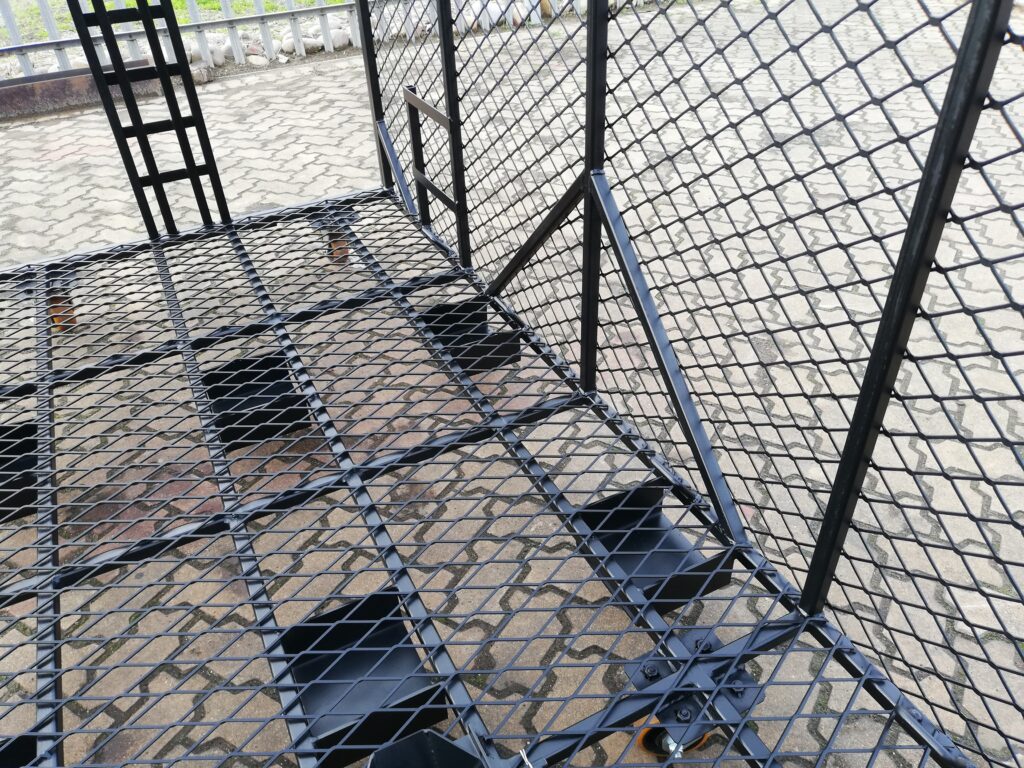

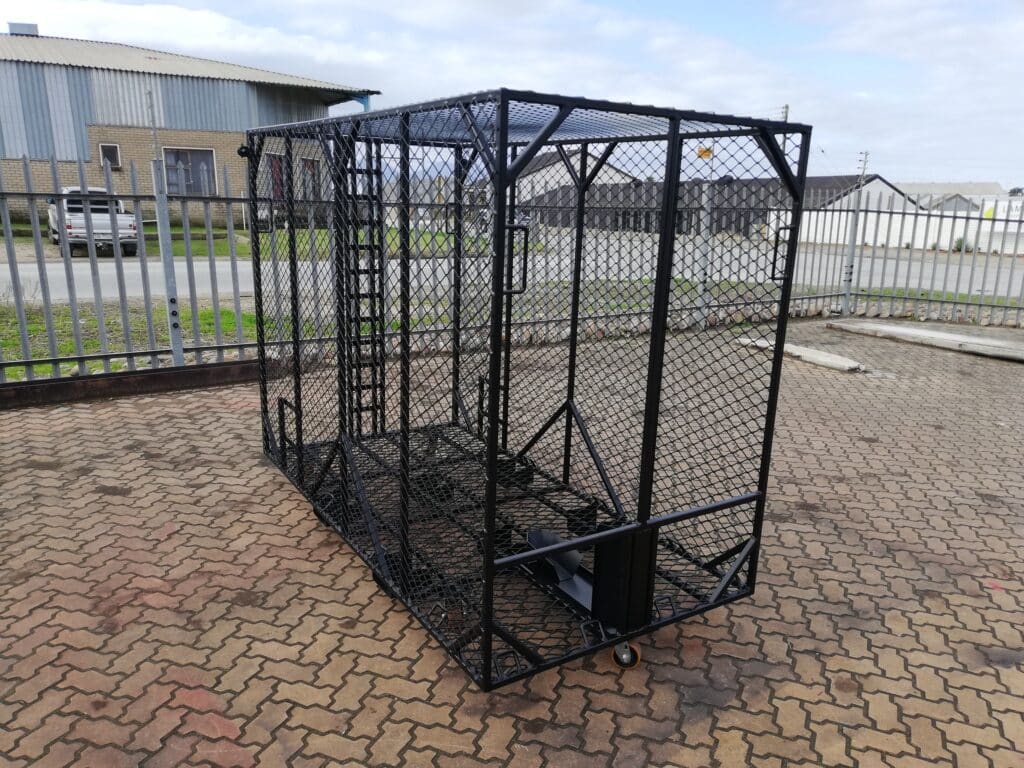

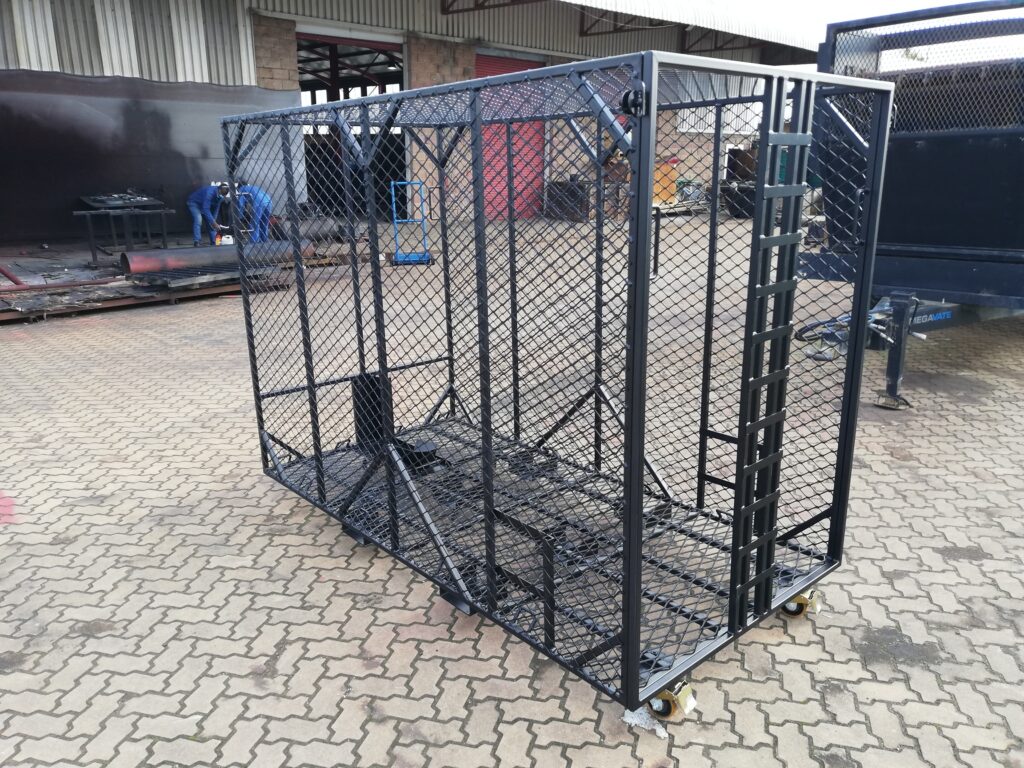

Sometimes, the challenge isn’t designing something new from scratch — it’s recreating an existing product so that it can be manufactured again without relying on long import times or outdated suppliers. That’s exactly what happened with this project: a motorcycle courier cage.
The cage is designed to securely hold a motorcycle during transport, making it easier to load, protect, and deliver bikes without risk of damage. My client had a sample unit, but no drawings or CAD files, and needed a complete reverse-engineered solution produced.
Using precision measurements and CAD modelling, I was able to recreate the entire cage design digitally, ensuring accuracy and manufacturability. From there, I produced a full set of manufacturing-ready drawings and documentation so the cages could be reproduced locally without delay.
Project Highlights
- Reverse engineered from a physical sample.
- Created a full 3D CAD model for design accuracy.
- Generated 2D manufacturing drawings ready for fabrication.
- Optimised for local production to save costs and lead times.
- Delivered a product that performs just like the original.
Why Reverse Engineering Matters
Reverse engineering isn’t just about copying — it’s about capturing the essence of a design, digitising it, and making it better suited for today’s manufacturing methods. Whether it’s a missing bracket, a discontinued part, or a product that needs scaling, I can help bring it back to life.
How I Can Help You
At ADB Consulting, I specialise in reverse engineering services in South Africa, including:
- Digitising parts into CAD models.
- Producing flat patterns, machining drawings, and 3D files.
- Suggesting design improvements for strength, weight, or cost-efficiency.
- Delivering production-ready documentation.
If you’re based in South Africa and need a product, part, or system recreated, I can help. From brackets and enclosures to full transport cages, my reverse engineering process saves you time and money — while ensuring accuracy.
