Manufacturing‑Ready CAD Models & Drawing Packs for Sheet Metal, 3D Printing & CNC Projects

1. Precision Design for Sheet Metal & Laser Cutting

When it comes to sheet metal fabrication, the devil is in the detail. Our CAD models are meticulously crafted to eliminate common pitfalls—such as unsupported cuts, improper bend radii, and inadequate clearance—ensuring your laser cutter or CNC plasma torch runs smoothly. Each part is annotated with precise dimensions, tolerances, and finish notes, making the transition from design to production seamless. We apply industry‑standard bend tables and simulation tools to predict material behavior, guaranteeing that the final product meets structural integrity requirements without unnecessary waste. The result? A laser‑cut sheet metal kit that’s ready for assembly, complete with 2‑D and 3‑D views, part numbering, and assembly sequence instructions.

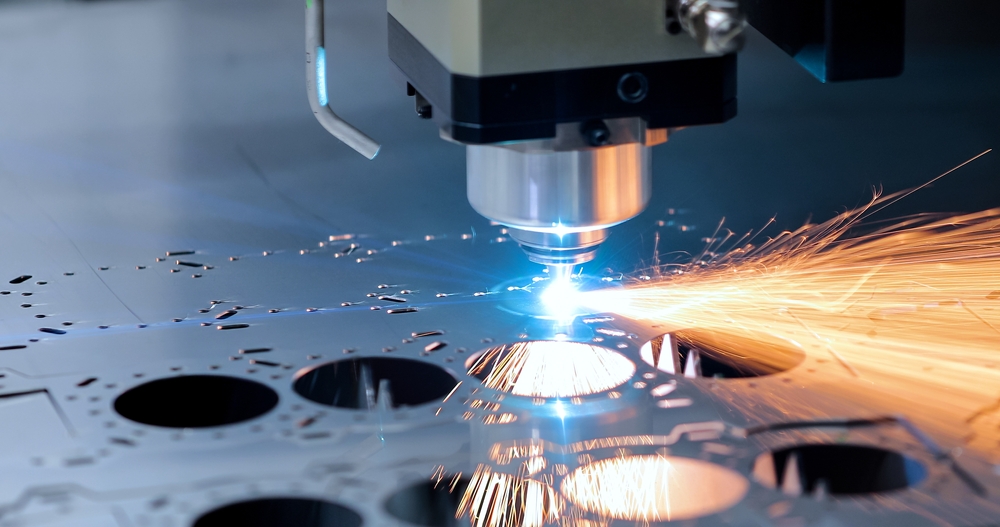

Laser‑cut sheet metal parts with precise edges

2. Optimized 3D Printing with FDM and Resin Technologies

3‑D printing offers rapid prototyping and low‑volume production, but only when the design is print‑ready. Our 3D CAD packs incorporate print‑specific guidelines: optimal layer heights, support structures, and print orientations. For FDM (Fused Deposition Modeling) parts, we recommend infill patterns, wall thicknesses, and filament types that balance strength and material cost. Resin‑printed models receive special treatment—our designs account for resin shrinkage, overhang angles, and post‑curing procedures. Every part comes with STL files, G‑code samples, and a detailed post‑processing checklist, allowing your lab or partner to hit the printer’s ready button with confidence. By pre‑empting common printing errors, we save you time, reduce material waste, and accelerate the path from concept to functional prototype.

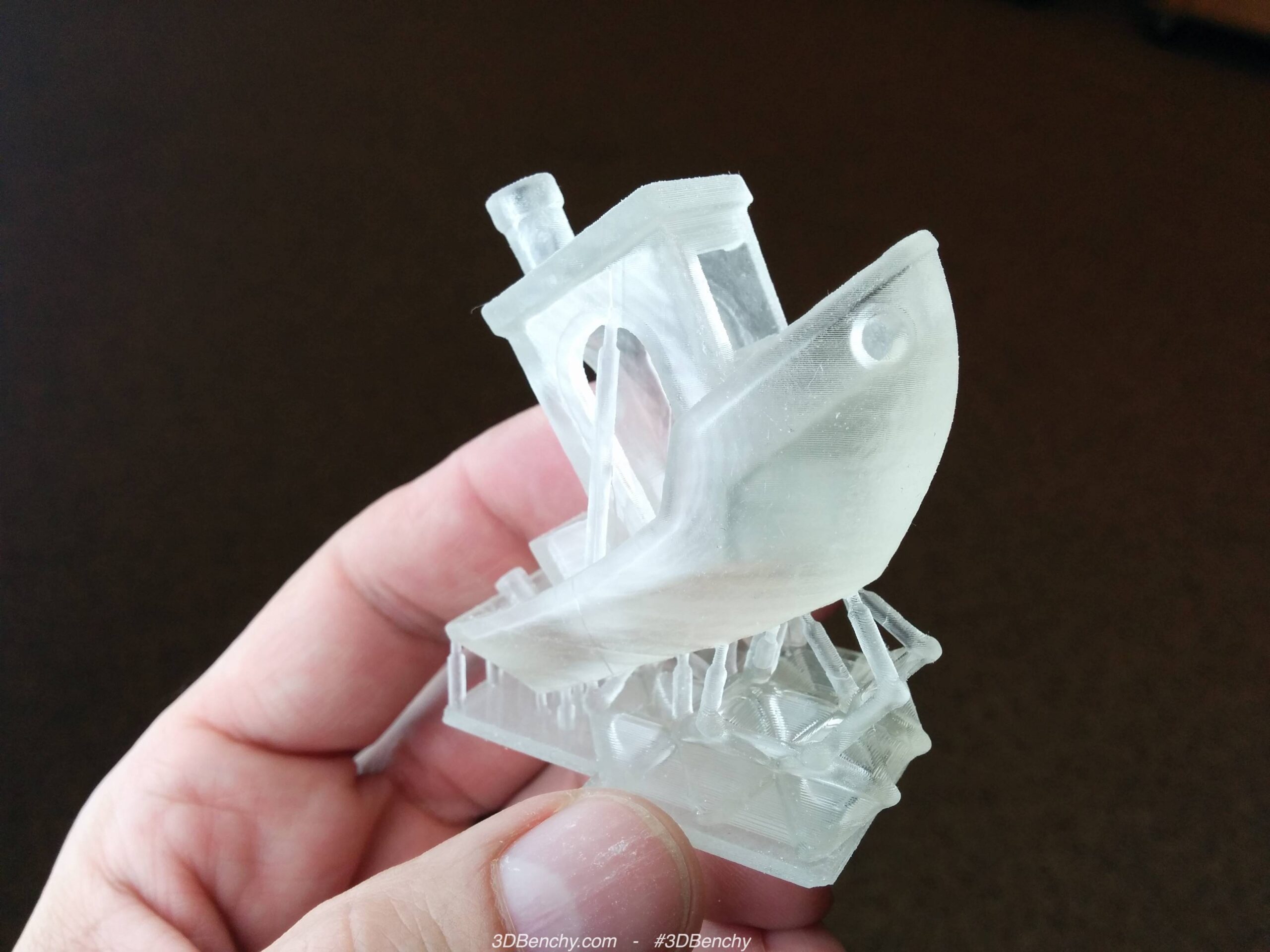

High‑resolution resin‑printed prototype with intricate details

3. CNC Machining & Lathing Mastery for High‑Precision Components

CNC machining demands meticulous toolpath planning and precise tolerance control. Our CAD assemblies are engineered with CNC best practices: we define tool paths, select appropriate cutting tools, and specify re‑machining strategies to achieve tight fits and flawless finishes. For milling operations, we incorporate 2‑flute and 4‑flute strategies, tool diameter selections, and coolant requirements. When turning on a lathe, we calculate feed rates, spindle speeds, and tool engagement angles to maximize surface finish while minimizing tool wear. Each part includes a machining instruction sheet, tool selection matrix, and verification drawings, ensuring that your CNC shop can produce the final product with minimal setup time and repeatable quality. The combined result is a robust, production‑ready part that meets the stringent standards of aerospace, automotive, and consumer electronics.

CNC‑machined aluminum component with tight tolerances

4. Seamless Production Workflow & Cost‑Effective Delivery

Beyond design, we focus on the entire production pipeline—from file preparation to final inspection. All CAD files are delivered in industry‑friendly formats: DWG, DXF, STL, and STEP, ensuring compatibility across CAD platforms and CAM software. We provide a production checklist that aligns with ISO 9001 and ISO 13485 standards, making it easier for you to maintain quality assurance. To keep costs low, we recommend material substitutions, part grouping for batch processing, and assembly line optimizations. Additionally, our team can review your manufacturing route and suggest process improvements, such as heat‑setting for sheet metal or multi‑axis machining for complex geometries. By integrating these strategies, you benefit from reduced lead times, lower scrap rates, and a clear path to mass production—all while staying within budget.
